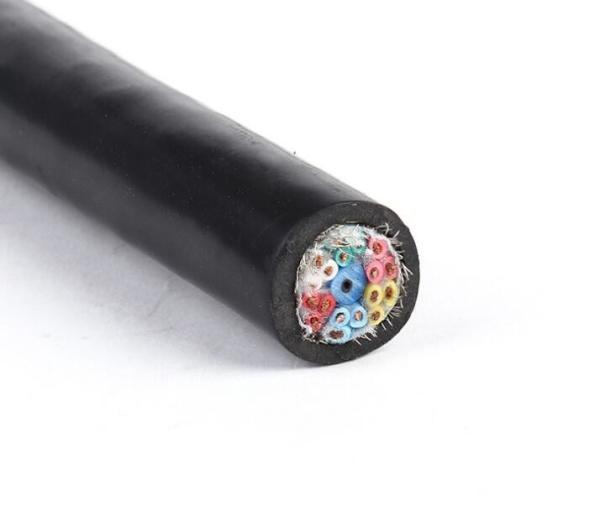

1000V Flame Retardant Power Cable PP Insulation UL21288

  • 1
  • 2

Brand Name : Hwatek

Model Number : UL

Certification : UL,ROHS, REACH

Place of Origin : China

MOQ : 3050M

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000KM Per month

Delivery Time : 2-3W

Packaging Details : carton/pallet

Conductor material : Tinned or bare copper, stranded or solid conductor, 30-4/0AWG

Application : external interconnection of electronic equipment

Jacket : FRPE

Rated voltage : 1000V

Rated temperature : 80ºC

Contact Now

UL21288 Flame Retardant Power Cable Supplier

Product character:
Excellent insulation performance, stable chemical properties, Heat resistance, anti-acid, environmental protection etc.
Pass UL VW-1 and CSA FT1 vertical flame test
Thin thickness of insulation, Halogen free, High-voltage resistance

Application: external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210

Constructure:
Tinned or bare copper, stranded or solid conductor, 30-4/0AWG
PE or PP insulation
Two or more single-core wires is twisted into pair or cabling again to form round cable, or flat, oval-shaped cable
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
FRPE or PVC inner jacket
FRPE jacket
Technical parameter:
Rated temperature : 80ºC
Rated Voltage: 1000V

1000V Flame Retardant Power Cable PP Insulation UL21288

Product Number Conductor Insulation Braid Shield Jacket Max. Cond. Resistance (200C)
Ω/km
Cores Size AWG NO./mm Conductor Nom. Thickness Nom. Dia. m/n/d Nom. Thickness mm Nom. Dia.
Dia . mm mm mm
mm
HT21288***003 8C 28 7/0.127 0.38 0.2 0.78 16/6/0.12 0.8 4.95 223
HT21288***005 6C 26 7/0.16 0.48 0.2 0.88 16/6/0.12 0.8 4.8 140
HT21288***007 4C 22 17/0.16 0.76 0.2 1.16 16/6/0.12 0.8 4.6 55.4
HT21288***008 2C 18 41/0.16 1.18 0.25 1.68 16/7/0.12 0.8 5.6 21.8
